Used JCB 3CX Backhoe Loader
A JCB 3CX backhoe loader combines a front loading shovel and rear excavator for loading, trenching and general site work. The supplied configuration sheet lists a 4.4 L JCB 444 Dieselmax engine, 4WD and a reference price of CNY 170,000.
SUPPLIED MACHINE PHOTO · JCB 3CX
Machine overview

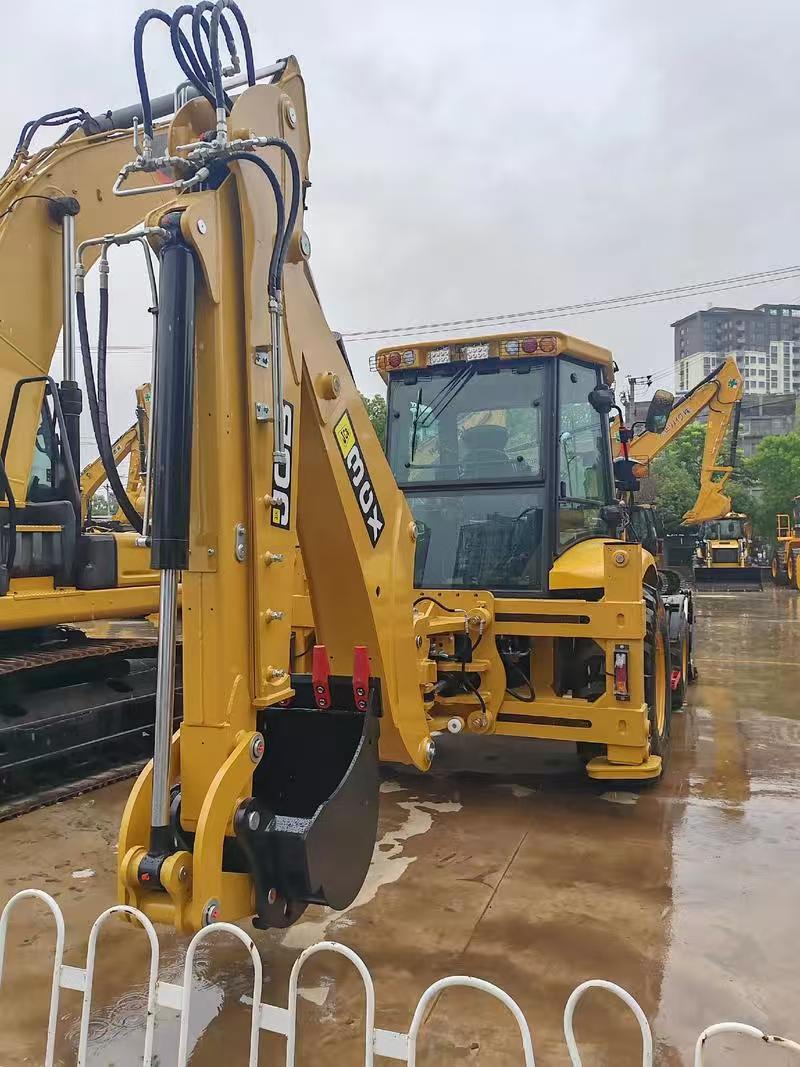

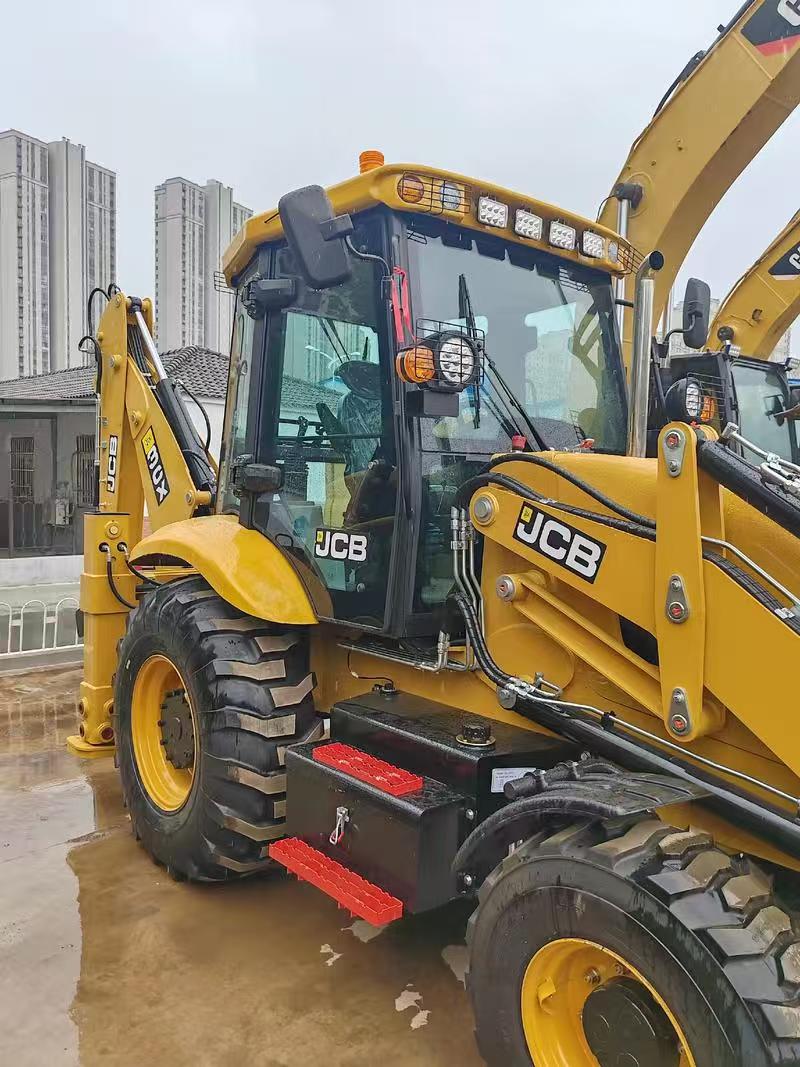

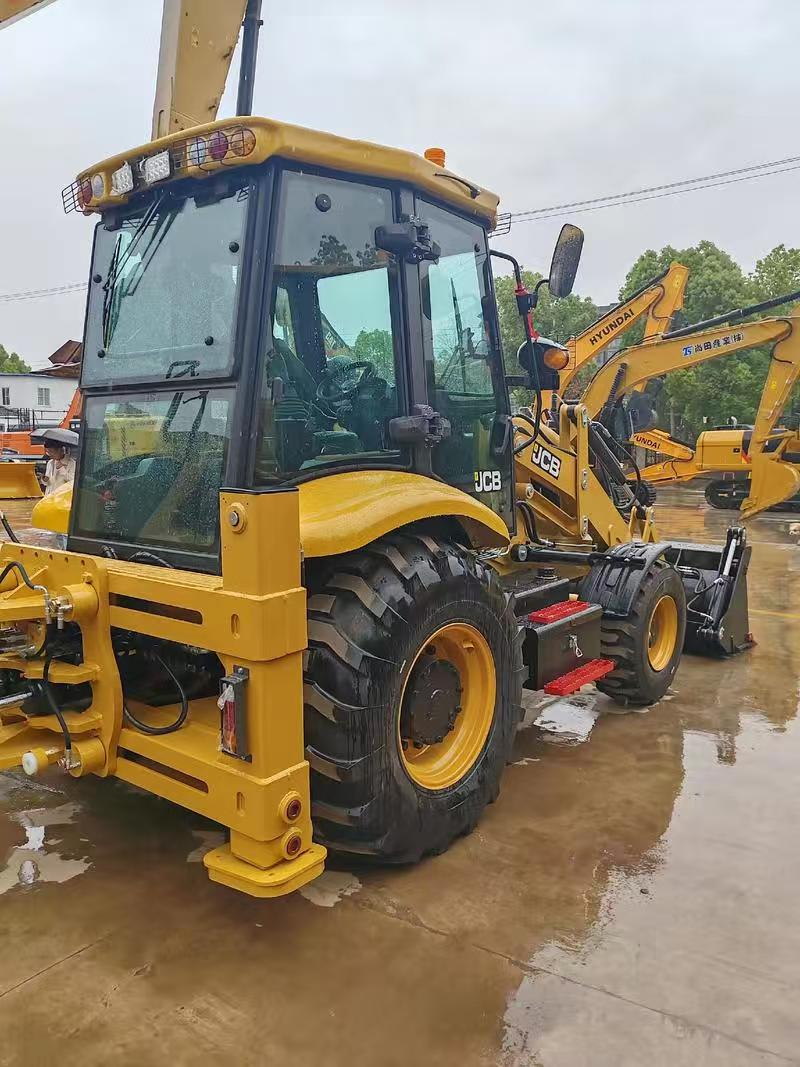

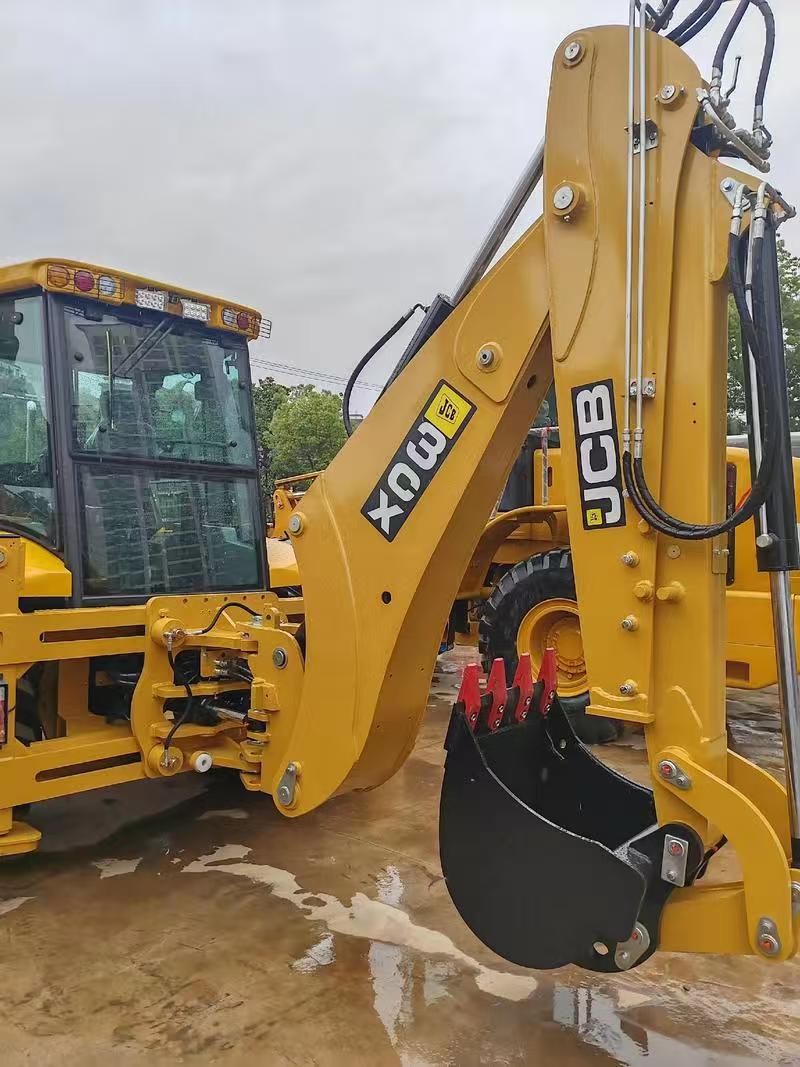

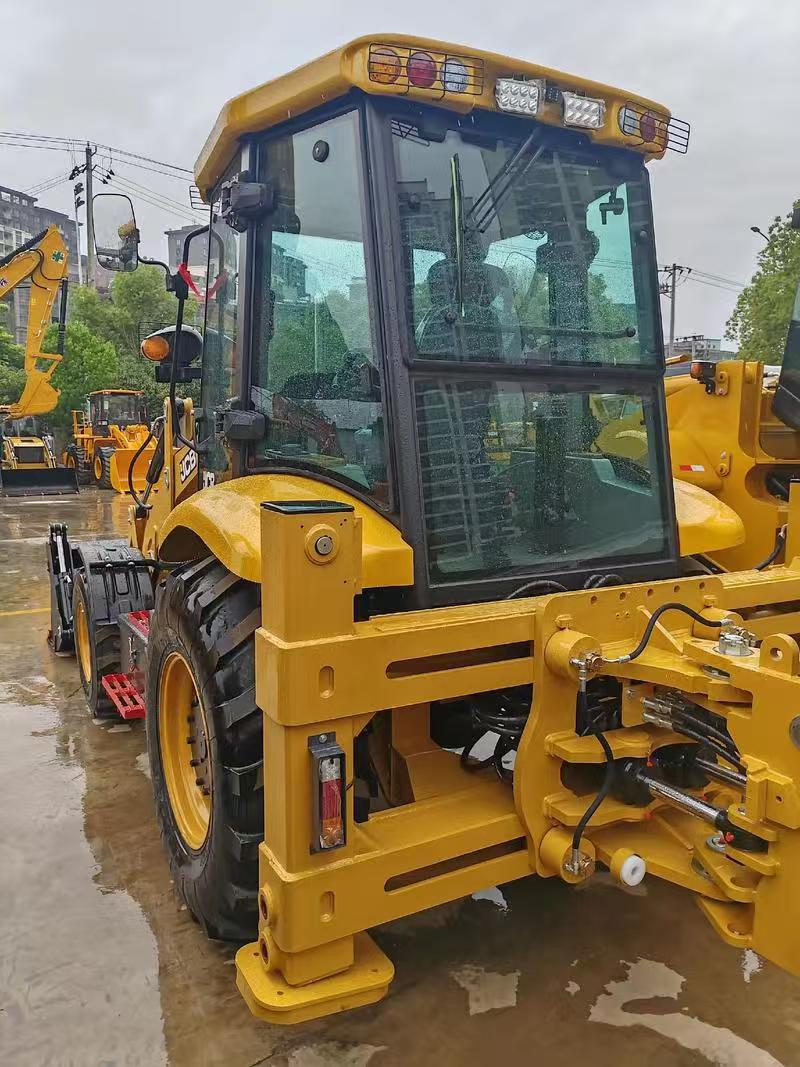

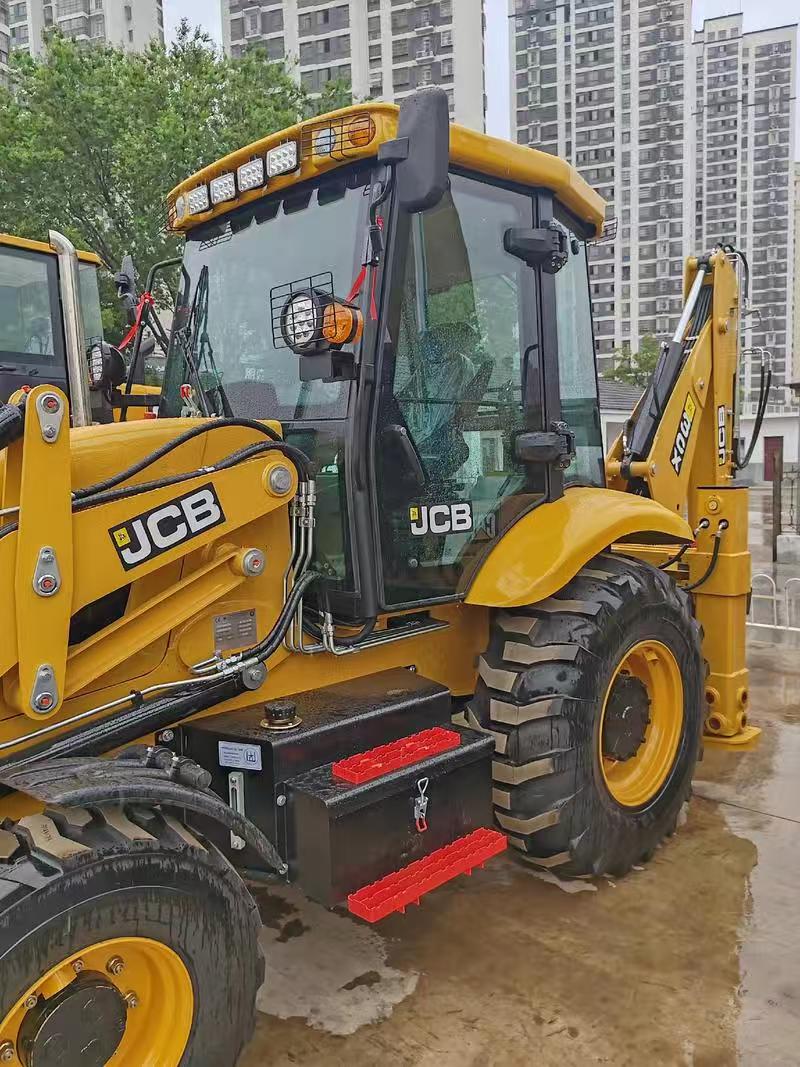

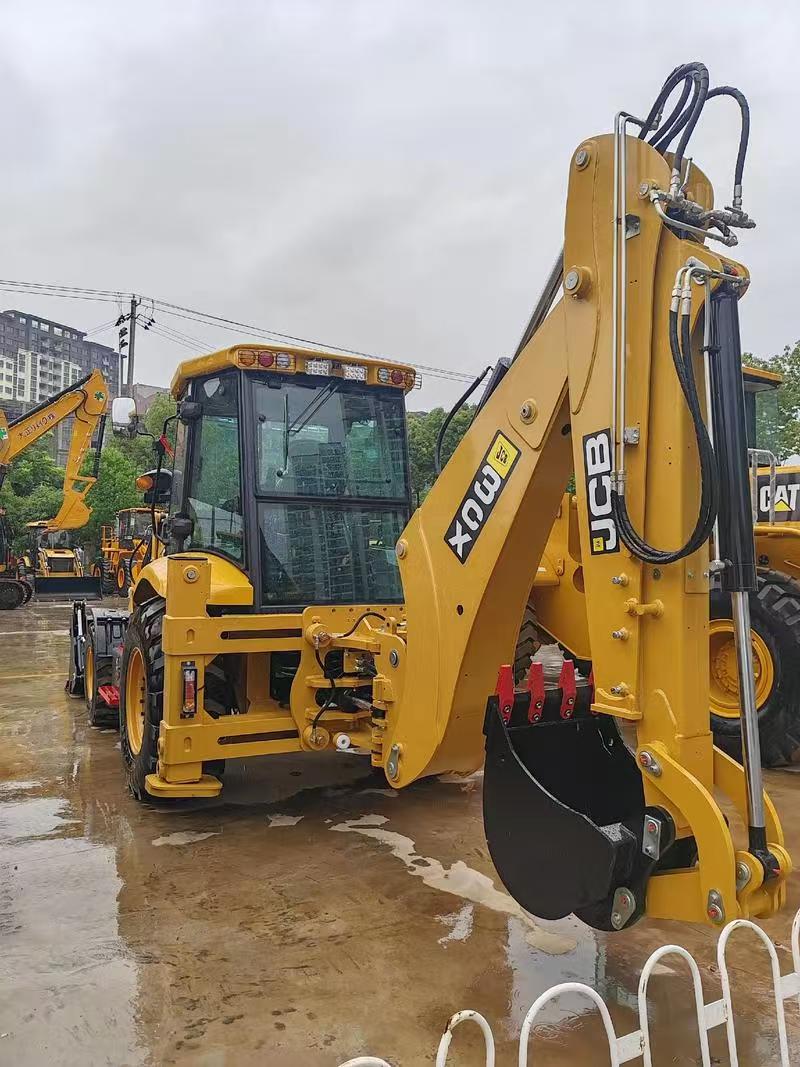

The JCB 3CX is a backhoe loader, sometimes called a two-ended machine: the front loader handles material and the rear excavator performs digging. The supplied configuration describes a 4WD machine with a 4-speed powershift transmission, dual hydraulic pumps, a 1.0–1.1 m³ loader bucket and standard or telescopic rear-dipper options. The machine photographs show JCB branding and 3CX boom markings.
Parameter values below follow the provided configuration sheet and include alternative variants where stated. Verify the individual machine against its serial plate and inspection record; attachments and specification can vary by year and market.
Technical specifications
| Model / machine type | JCB 3CX backhoe loader (two-ended machine) |
|---|---|
| Reference price | CNY 170,000 (listed as 17万 in supplied file) |
| Engine | JCB 444 Dieselmax · 4.4 L · inline 4-cylinder · turbocharged · water-cooled |
| Rated output | 68.6 kW (93 hp) @ 2,200 rpm |
| Maximum torque | 390 N·m @ 1,300 rpm |
| Emissions | Euro III (as stated in supplied configuration) |
| Transmission | 4-speed powershift · 4 forward / 4 reverse · torque converter |
| Drive / differential | Four-wheel drive · rear limited-slip differential |
| Maximum travel speed | Approx. 34.8 km/h |
| Hydraulic system | Dual pumps · load sensing · dual circuit · independent front/rear controls |
| Main pump flow / system pressure | Approx. 154 L/min / 26 MPa |
| Loader bucket capacity | Approx. 1.0–1.1 m³ |
| Loader dump height | Approx. 2.74 m |
| Backhoe digging depth | 4.32 m (standard) / 5.97 m (telescopic dipper) |
| Backhoe horizontal reach | Approx. 5.37 m |
| Breakout force | Loader bucket approx. 53.3 kN · backhoe bucket approx. 38.9 kN |
| Wheelbase / ground clearance | Approx. 2,170 mm / 350 mm |
| Tyres | Front 14×17.5 10PR · rear 19.5×24 12PR |
| Brakes | Hydraulic braking system |
| Fuel / hydraulic tank | Approx. 160 L / 132 L |
| Operating weight | Approx. 7.37–8.1 t |
| Overall dimensions (L×W×H) | Approx. 5,620×2,360×3,610 mm |
| Minimum turning diameter | Approx. 7.8 m |
| Maximum gradeability | Approx. 30% |
| Cab / operator controls | Enclosed cab · suspension seat · heating and air conditioning · pilot or mechanical control options |
The reference price is transcribed from the supplied Chinese configuration file. Confirm currency, machine identity, included attachments, refurbishment scope and final delivered price in a written quotation.
Check both working ends and the drivetrain
- Cold-start the engine; inspect blow-by, smoke, oil pressure, coolant and leaks.
- Test powershift operation in all forward and reverse gears, torque converter response and 4WD engagement.
- Operate loader lift, tilt, bucket and rear excavator through full travel; check hydraulic pressure, drift and cylinder seals.
- Inspect boom, dipper, pins, bushes, stabilizers, chassis welds and attachment locking points for cracks or excessive play.
- Verify tyres, brakes, steering, lights, cab safety equipment, hour meter and serial plate against the inspection report.
Match the machine to your site
Before choosing a JCB 3CX configuration, define trench depth, loading height, ground conditions, travel distance, attachment needs, operator skill and local emissions rules. CRTA can help compare the listed configuration with other factory offers, request serial-number-linked inspection evidence and coordinate independent inspection, insurance and shipping services.
